Easy To Operate 20oz/30oz Straight Mug Heat Press Machine for Sublimation Customized DIY Tumbler Mugs

Short Description:

Customization:
Surface design: stainless steel, spray painting, powder coating, UV coating, water transfer print, gas transfer print.
Logo design: we can do custom for your logo and pic with silkscreen print, laser engraved, embossed logo, heat transfer print, 3D print, sublimation transfer.
Packaging design: egg pack, white box, custom color box, cylinder box, box with window,carton case with your logo.
lid design: suck lid ,straw lid  ,kids trainer lid,flip lid ,slid lid ,wide mouth sport lid.


Product Detail

Product Tags

This machine is not suitable for minors to use or food processing.

General

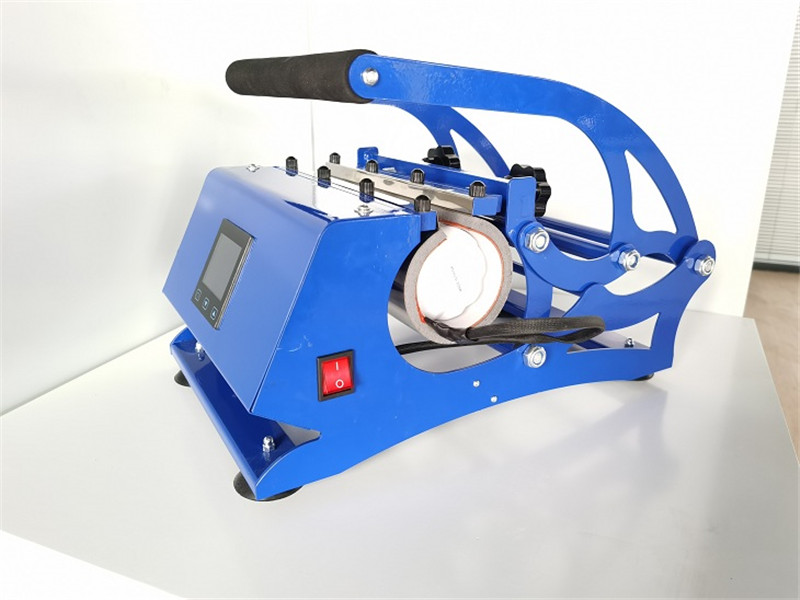

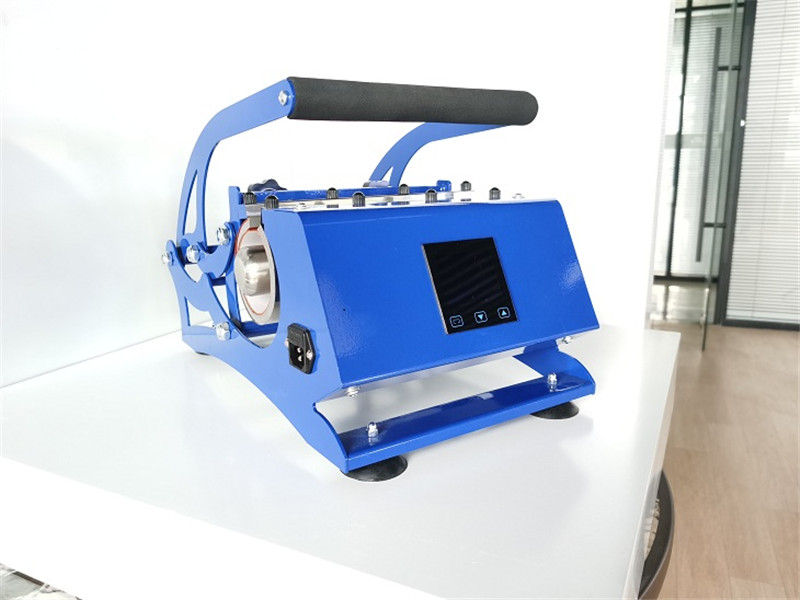

The Mug Press is a great tool for applying your digital images onto sublimation coating mugs. Set up and print a digital image onto transfer paper using your favorite image manipulation software program, and then use the Mug Press to heat and transfer the image onto the substrate. The main benefits of the Mug Press is how quickly the image is transferred, the easy-to-use digital control panel and thumbscrew pressure adjustments.

Easy To Operate 20oz/30oz Straight Mug Heat Press Machine for Sublimation Customized DIY Tumbler Mugs

Components and functions

①Clean the mug surface,cut the image as per your design
②Wrap the mug with the cut image,Make the image in the central and make it symmetrical both sides;Stick the paper with thermal tape.
③Put the mug in the center of heating mat

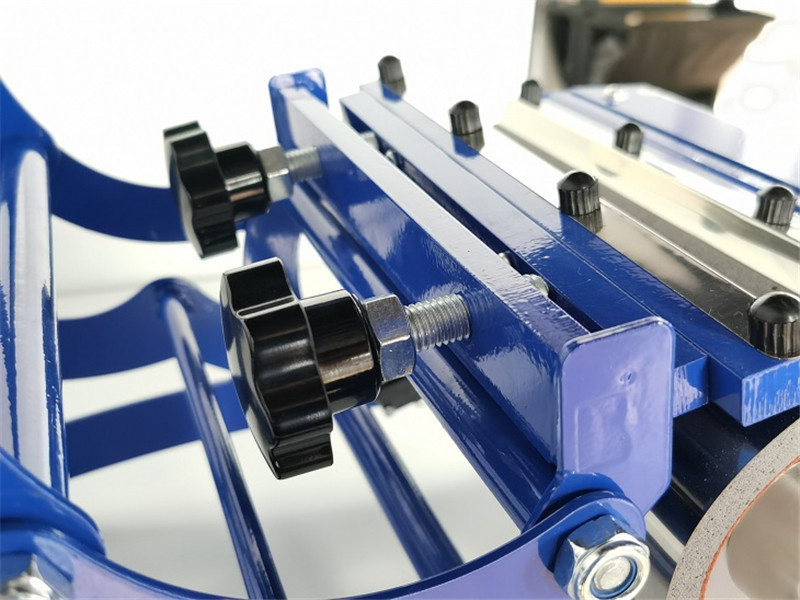

④Adjust the pressure ball for printing mugs, not too tight, or too loose and close the handle.

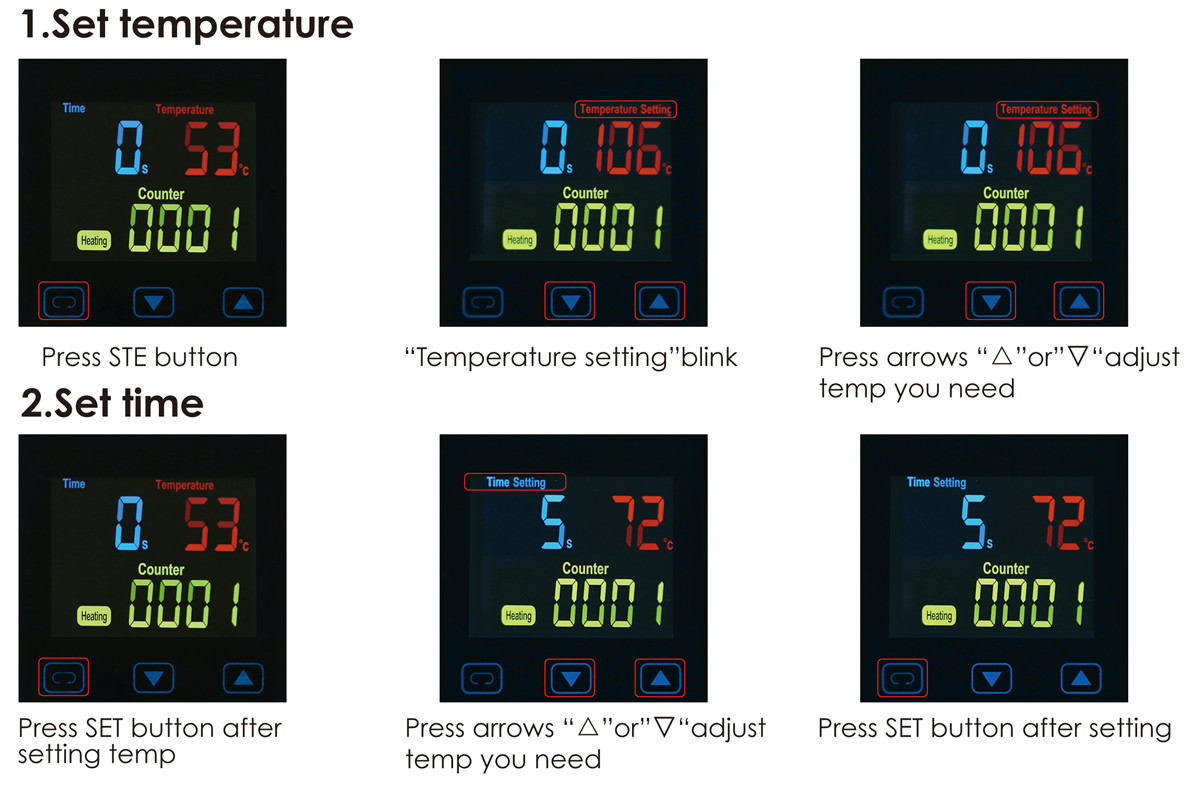

⑤Turn on power ,adjust the gauge time about 200S-300S,temp about 180℃-200℃.
⑥Press Time counting down button ,the machine will sound an alarm automatically when reaching time,turn off power , take out the mug from the heating mat
⑦Peal off the paper. Put the mug S L O W L Y into cool water,then see a photo mug is well done by yourself!

Pls make sure there will be mug in the heating element when you turn on power

Problem Cause Handling methods
1 No display after powering up Poor outlet contact, orthe fuse is blown. Change the power cable andcheck outlet. Replace fuse with the supplied backup fuse.
2 Fails to heat up or does not heat up to the temperaturedisplayed. The heating pad isburnt out. Check heating padconnections. Replace theheating pad.
3 Lack of color, faded image. Insufficient temperatureand/or press time. Adjust the temperatureand/or increase the heating time.
4 Darkened, deep color; blurred image. Pressed for too long,temperature too high Adjust the temperature andheating time.

Pls make sure there will be mug in the heating element when you turn on power
